Chemilizer Chemical Injection Pump - No Electricity Needed

APS TechNotes See all articles


chemilizer chemical injection pump

Chemical Injection Pump

Click for larger image
View Products : Chemilizer Injection Pumps

Chemilizer’s liquid chemical injectors are powered by water-flow,making them the most environmentally friendly injectors on the market and since they are powered by water flow, they will never over treat the water!

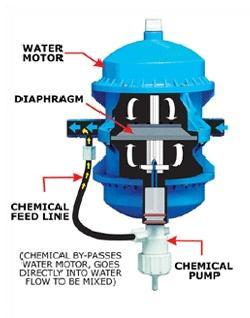

Chemilizer’s unique design begins with the water-powered “motor”. The motor utilizes a reliable and durable diaphragm assembly, which is activated by the flow of water through the body of the injector. The higher the flow of water through the injector, the faster the diaphragm moves. The diaphragm assembly follows the water flow which is one of the reasons our injectors are known for their unparalleled accuracy.

The next element of Chemilizer’s unique design is the chemical pump assembly. The positive-displacement pump dispenses a precise amount of chemical solution. Chemicals are injected after the water has passed through the water motor, eliminating the potential for chemical deterioration of the water motor. The action of the chemical pump and resultant volume of injection is controlled by the diaphragm assembly. This ensures the right amount of chemical is injected into the water. Never more, never less!

  • Typical Installation

  • Gravity Fed Installation Diagram

  • Pool Installation Diagram

  • Well Water Installation Diagram

  • Dual Pump Installation Diagram


    Technical Specifications
    U.S. Measure Metric Measure
    Water Flow1 GPH – 780 GPH
    0.01666 GPM – 13 GPM    		3.78 LPH – 2,724 LPH
    0.063 LPM – 45.4 LPM
    Pressure Range2 to 80 psi0.138 to 5.51 bar
    Max. Temp110° F43.3° C
    Pipe Size*3/4” nht (National Hose Thread)N/A
    Ratio**see label on chemical pump**see label on chemical pump
    Size11” high x 8.5” wide27.9 cm high x 21.6 cm wide
    Weight6.75 lbs 2.5 kg























































    		•
